This Lew's Hardware Bar Series is offered in matte black finish.
Collection: Lew's Hardware Series
- Made of solid brass
- Finish: Matte Black
- Easy to install with screws provided: use either (1) 8-32 x 1-in or (1) 8-32 x 1-1/2-in long screw, depending on the drawer/door thickness.
Dimensions
Disc Knob
Diameter: 1-1/8"
Base Diameter: 3/4"
Projection: 1-1/4"

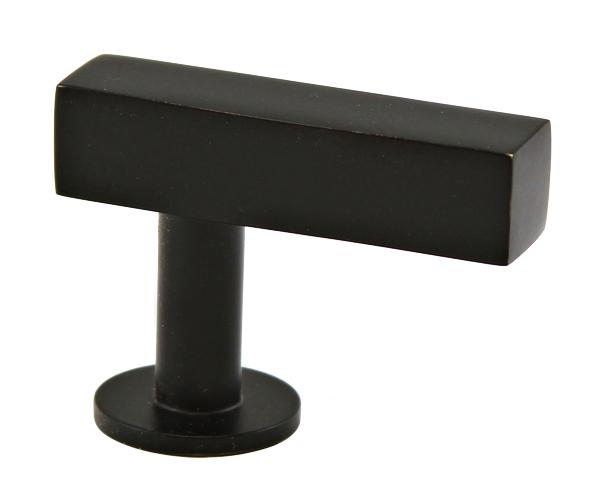

T-Knob
Length: 1-3/4"
Width: 7/16"
Projection: 1-1/4"
5" Bar Pull
Overall Length: 5"
Projection: 1-1/4"
Hole Spacing: 3" centers
7" Bar Pull
Length: 7"
Width: 7/16"
Projection: 1-1/4"
Hole Spacing: 3" centers or 96 mm centers (adjustable posts)
10.5" Bar Pull
Length: 10 1/2"
Width: 7/16"
Projection: 1-1/4"
Hole Spacing: 6" centers
14" Bar Pull
Length: 14"
Width: 7/16"
Projection: 1-1/4"
Hole Spacing: 10" centers
18" Bar Pull
Length: 18"
Width: 7/16"
Projection: 1-1/4"
Hole Spacing: 12" centers or 15" centers (adjustable posts)
24" Bar Pull
Length: 24"
Width: 7/16"
Projection: 1-1/4"
Hole Spacing: 16" centers or 20" centers (adjustable posts)
14" Appliance Handle
Center to Center: 9"
Height/Projection: 2.188"
Length: 14"
Bar thickness: 5/8"
